VAWT Offshore - Shallow Water / 4 Leg Platform

36 -- 40 MegaWatt 13.2kV With four Generators at the bottom. Thus, the structure is "bottom heavier, and very top light" making it more stable in higher winds / wave conditions.

BEST VAWT 36M INNOVATION

The patented design elements of the BEST VAWT 36M is what makes it a far better and higher electrical output wind turbine.

STOP WHAT IS LESS - BUILD WHAT IS MORE

What Companies and Nations are now building NEEDS to change, from HAWT of today... TO The BEST VAWT 36M of the future. 300% higher output, plus 101 better feature benefits.

ECONOMIC GROWTH & POTENTIAL MARKET EXPANSION

The Beck Engineering Co. BEST VAWT 36M Project offers great economic growth opportunity for Brasil and other countries. The materials incorporated into the unique design are diverse. Though the size of the VAWT is smaller than current horizontal designed wind turbines,.. the BEST VAWT 36M produces greater electrical output @ 36Mw 6kV. Capital investment bottom line... countries can afford to have greater numbers of units built and installed in the near future, cutting away at the Energy Crisis problem.

LINK TO PRE-LIM DWG's

BRASIL ... GREAT PLACE TO START

The BEST VAWT 36M was conceived in Recife, Brasil. It could first be built in Brasil. The development needs to progress here, and expand to many other nations and installation locations.

OFFSHORE VAWT CONNECT TO INLAND GRID VIA OVERHEAD ACSR TRANSMISSION LINE MEANS & METHODS

The Beck Engineering Co. BEST VAWT 36M with integrated Substation on each Structure... will allow High Voltage - 13.2kV Generator output,, to be tranformed to 35kv/69kv/112kv electrical power to be connected to the Utility Grid vai less expensive methods. Overhead offshore transmission lines are tried and proven. The BEST VAWT 36M can utilize either marine cable or coated ACSR overhead cabling means & methods. Aerial use is far less expensive, much easier to service.

OFFSHORE VAWT TIE TO GRID

Offshore HV Transmission Lines exist, and/or can be built, to allow the BEST VAWT 36M towers, each structure producing 36 - 48Mw, and connected to the Grid. Offshore FARMs can be populated with a greater number of structures, in a closer grid pattern, which translates to less connecting materials.

WIND FARM VAWT vs HAWT COMPARISON

TOTAL Wind Farm output, area plan footprint layout size, and lowers costs are huge advantages with the BEST VAWT 36M

60 MW VAWT FUTURE DESIGN

New innovation and technology is the key to higher Megawatt Generator output, with higher efficiency and lower torque limitations. 60 Megawatt per Structure would be our future goal.

INLAND - HIGH ELEVATION / STRONG WIND PLACEMENT

Given the High Output [ 36Mw ] of the BEST VAWT 36M - higher elevation inland where strong winds exist can produce Rural Grid areas greater levels of electrical power.

BEST VAWT 36M ... INLAND INSTALLATION PROFILE

36 -- 40 MegaWatt @ 13.2kV Electrical power output... 300% more than current industry HAWTs installed. Four 9 - 10Mw generators in parallel, making the VAWT highly efficient.

INLAND - COASTAL INSTALL

The size and appeal of the VAWT with high Mw output allows for coastal installations where consistent strong winds are similar to offshore winds, thus generating more power with less expense.

Protecting Mammals - Whales & Dolphins

In order to curtail the use of Low Frequency sound for ocean surveys, Beck Engineering VAWT Company is dedicated to engineering and building a much QUIETER Offshore Wind Turbine.

DESIGN INNOVATION - ECO FRIENDLY

With the BEST VAWT 36M ... the Power Plant Building & Structure allow for the use of innovative methods, means, and products which will greatly reduce or even eliminate the death of birds and bats... all important to ecology.

BEST VAWT 36M Utilization for SECURITY

The expansive Power Plant and Extensions allow for Security Operations, for quick response of both service and Emergency Response against infrastructure attacks.

BEST VAWT 36M Inland foundation

Cost benefits of VAWT foundation - material & labor cost savings. Less concrete & rebar translates to less pollution.

BEST VAWT 36M Power Plant Offshore

Expanded Power Plant design with multiple Extensions & walkways. Flexibility of mechanical plant equipment, substation, heliport, service Tech living spaces,

VAWT Patent Pending -- Design Summary

36 -- 40 MegaWatt - Four Generators @ 13.2kV
Future BEST VAWT 36M could house "paired" generators 4 - 7.5MW which would produce 60MW of total electrical output.

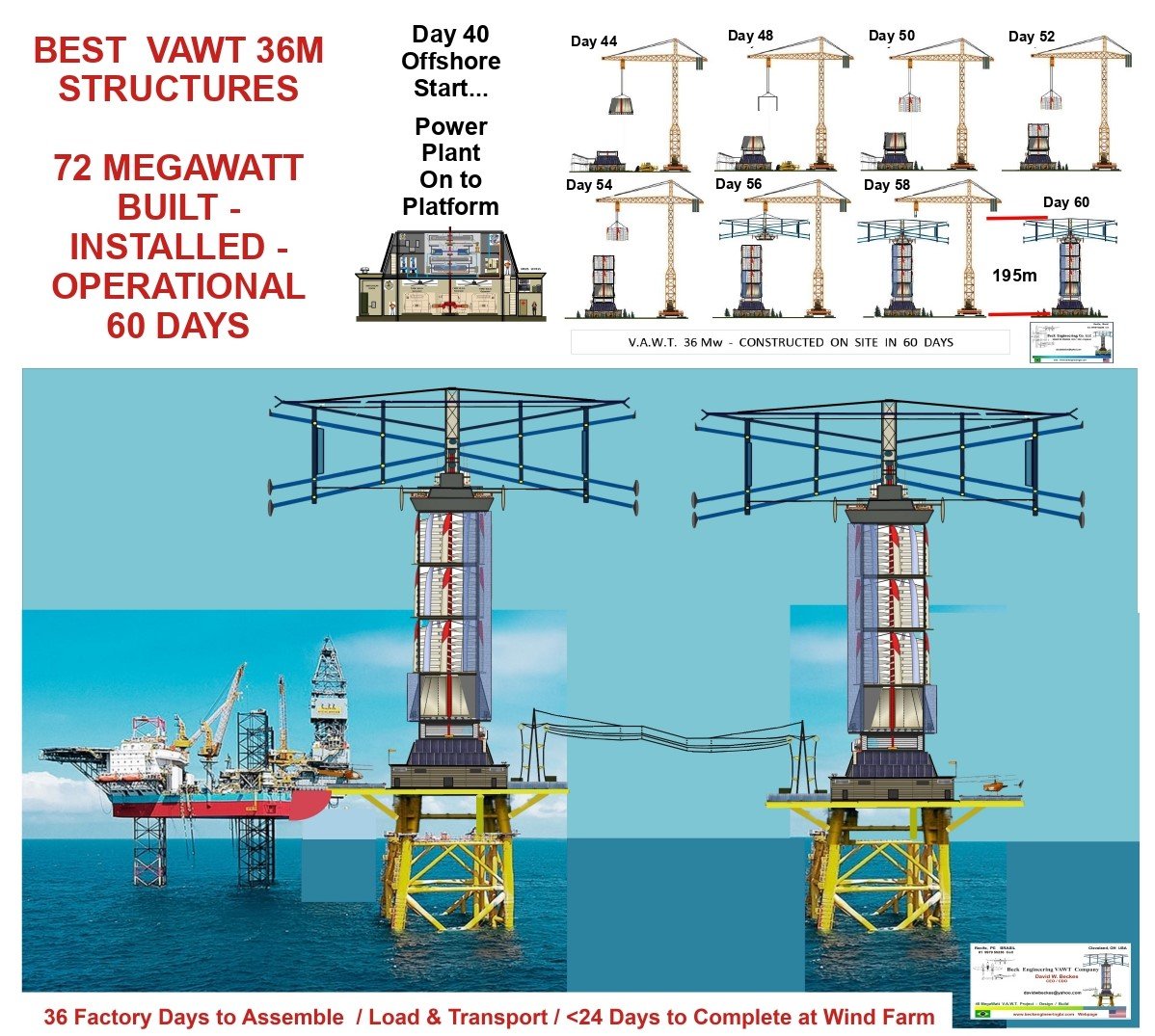

BEST VAWT 36M - Sectional / Modular Construction Built

The BEST VAWT 36M is uniquely designed to be manufactured in modular and easily shipped sections, assembled via standard construction methods, erected with tower crane. Overall time of manufacturing and erection allows for a "Speed to Market" Capital funding advantage.

BEST VAWT 36M Offshore Size Comparison to 9Mw HAWT/ Cafe' w / Science Center Dome w / 108 MW Power @ 13.2kV

Cost Benefits of BEST VAWT 36M are many, 300% greater output the first, size and savings 2nd, with many more also.

OFFSHORE VAWT & HAWT - "NO COMPARISON" Comparison

The benefits of the BEST VAWT 36M in both power output, and Wind Farm installed cost are huge.

BEST VAWT 36M SIZE & COST Value Engineering

The VAWT TODAY out performs current AND FUTURE HAWTs. 300% greater electrical output. Smaller in size and less capital cost.

BEST VAWT 36M - OFFSHORE COMPARISONS

The size and weight of the VAWT allow for less expensive and more traditional 4 post foundation. Less steel and concrete - less pollution.

Offshore EFFICIENCY >>> VAWT

36 MegaWatt 6,000V Per Structure means that FEWER units can eliminate older lower Mw HAWT's that currently exist in coastal waterway & beach locations not well suited for Wind Turbines. D.W.B. VAWT units OFFSHORE can out produce older turbines by as much as a 1 : 12 ratio.

OFFSHORE - COMPARISONS

ONE D.W.B. VAWT @ 36Mw is
less expensive... than THREE
HAWT's. The clear choice for
OFFSHORE Wind Turbines in
the Future... should be simple choice to make.

TWO - VAWT's INLAND Between Condo's

Beck Engineering Co. BEST VAWT 36M... two towers = 72 MegeWatt 6,000V, integrated into a population site with 26 Story Apartment Buildings. This can be done with a VAWT... not possible with other designs, nor with Horizontal wind turbines.

INLAND COASTAL INSTALL APEAL

The 36Mw VAWT has an advantage and edge over HAWT's in placement location next to Urban & highrise buildings.
This due to shorter size, proportional to our 36Mw compared to HAWTs 7 - 12Mw. The stationary power plant and structure tower permit architectural appeal, while the rotating upper wings/sails reuire LESS realty of clearance..

Multi Plex Application

18Mw Scaled VAWT atop Office / Residential Building

1/40th Scale Prototype Model - functioning non electical producing test model.

Development in progress @ the Recife, Brasil studio and office.

BEST VAWT 36M model with two functioning Lower Sections turning via small house fans, 5kg flywheel at shaft bottom. Concept scale model to display the advantages of the Power Plant Extensions, helipad, and auxilarly power provided by solar.

BEST VAWT 36M model with two functioning Lower Sections turning via small house fans, 5kg flywheel at shaft bottom. Concept scale model to display the advantages of the Power Plant Extensions, helipad, and auxilarly power provided by solar.

SCROLL FOR MORE DWG's

Leave a comment or send an Email... more information can be provided upon request.
